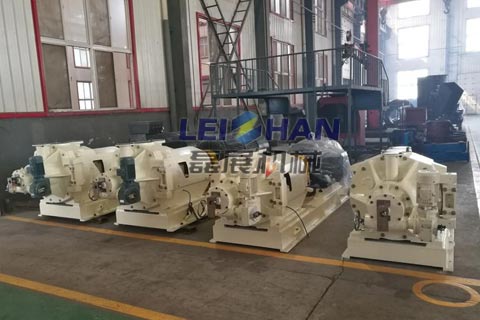

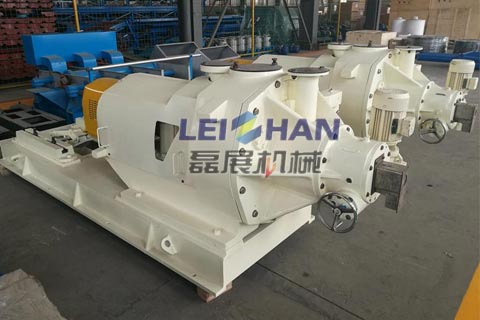

DD Series Double Disc Refiner

dd-series-double-disc-refiner
DD Series Double Disc Refiner is used for continuously pulping chemical wood pulp,mechanical pulp,and recycled pulp under consistency of 3%-5% in paper pulp making line,which is an ideal pulping equipment.

Features of DD Series Double Disc Refiner

1. Mainly used for pulping,improving slurry beating degree to meet the paper making needs.

2. It can be installed variety tooth refiner plate. Suitable various raw materials such as wood pulp, mechanical pulp, chemical pulp, waste paper pulp, etc.

3. Adopt constant power control system , beating effect is stable.

4. Accurate retract mechanism , easy to control, the beating effect is good.

Technical Data of DD Series Double Disc Refiner:

Scroll Table ->

Type DD550 DD600 DD660
Diameter of Plate (mm) Φ550 Φ600 Φ660
Product Capacity (t/d) 10-100 12-150 15-200
Concentration (%) 3-5
Motor Power(kw) 160-250 185-315 220-500

* If you can’t find the product you are looking for please contact us leizhanchina@gmail.com to enquire about our full range.
Download complete technical literature [ PDF ]
