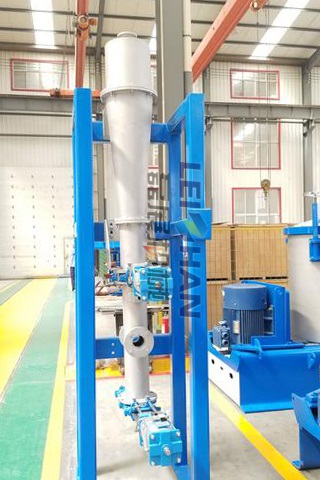

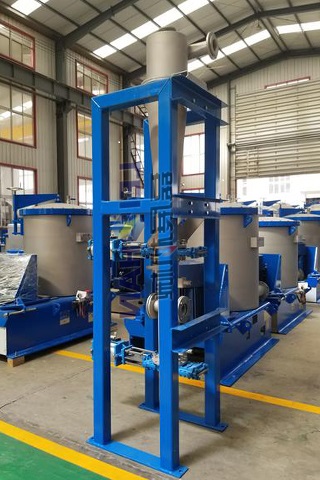

ZSC Series High Density Cleaner

ZSC Series High Density Cleaner
Cleaning equipment ZSC Series High Density Cleaner is mainly applied to remove all kinds of heavy impurities in paper pulp, like staples, stones, glasses, etc. in stock preparation system.

Features of ZSC Series High Density Cleaner

1. Volute Pulp inflow chamber, the eddy ability is strong and low pressure area subarea is obvious. This makes accepts and impurities separate thoroughly.

2. Wear resistance ceramics cone, long service life.

3. Specially designed long cone has small taper angle and fine cleaning efficiency.

4. Equipped with PLC control cabinet, convenient and easy to control, sufficiently discharging impurities.

Technical data of ZSC Series High Density Cleaner

Scroll Table ->

Type ZSC2 ZSC3 ZSC4 ZSC5 ZSC6 ZSC7
Product capacity(t/d) 25-45 60-85 90-120 120-160 160-200 230-380
Concentration of input pulp(%)  2-5
Pressure of input pulp(Mpa) 0.15-0.35
Pressure of output pulp(Mpa) 0.1-0.25
Pressure of backwashwater(Mpa) Into a pulp pressure+0.02Mpa
Discharging mode hand/automation

* If you can’t find the product you are looking for please contact us leizhanchina@gmail.com to enquire about our full range.

Download complete technical literature [ PDF ]
